C/D STRUCTURAL PLYWOOD
Overview

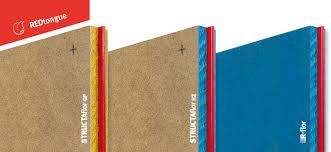

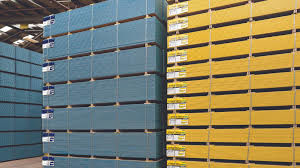

PARTICLE BOARD FLOORING
Overview
PRODUCT RANGE SUPPLIED :
| 3600X600 PBF BLUE TONGUE 25MM | |||
| 3600X800 PBF RED TONGUE 22MM | |||
| 3600X800 PBF RED TONGUE 22MM H2 | |||
| 3600X800 PBF YELLOW TONGUE 19MM | |||
| 3600X800 PBF YELLOW TONGUE 19MM H2 | |||
| 3600X800 PBF YELLOW TONGUE RFLOR 19MM H2 |

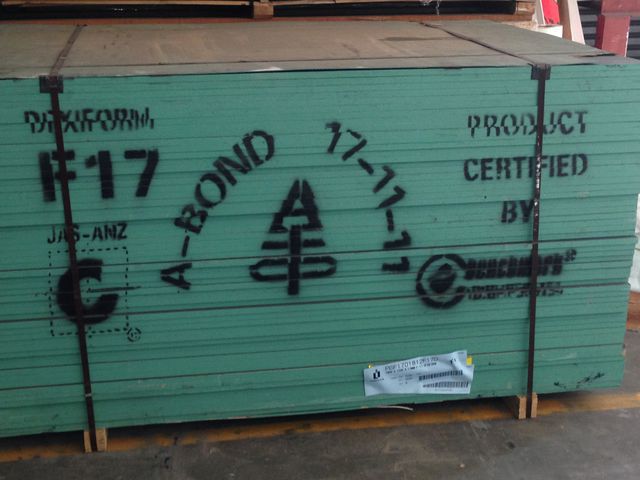

FORMWORK PLYWOOD (17MM)
We stock Formply which is made of a high-density overlay (HDO) of phenolic resin impregnated paper bonded to plywood. Formply is ideal for concrete formwork.
The overlay helps to protect the hardwood face veneer as well providing a sound surface for the poured concrete. It is manufactured to Australian Standards AS/NZS 6669.
We supply the following:
| Formply (Hardfaced/Formrite) Standard: AS/NZS 6669 | ||||||
| Appearance | Description | Grade | Thickness | Length x Width (mm) | Applications | Technical Data |
 | Formply, other-wise known as Hardface, is a plywood made with a bond glue, radiata core and hardwood veneer faces with a high density overlay (HDO) resin impregnated finish that is smooth, perfect for use in concrete formwork and can be used several times. | HDO face HDO back F11/F14 | 12mm 17mm 17mm | 2400 x 1200 1800 x 1200 2400 x 1200 | Formwork in walls, floors, roofs, frames, bridges, dams, etc. |  formply 90.40 Kb |

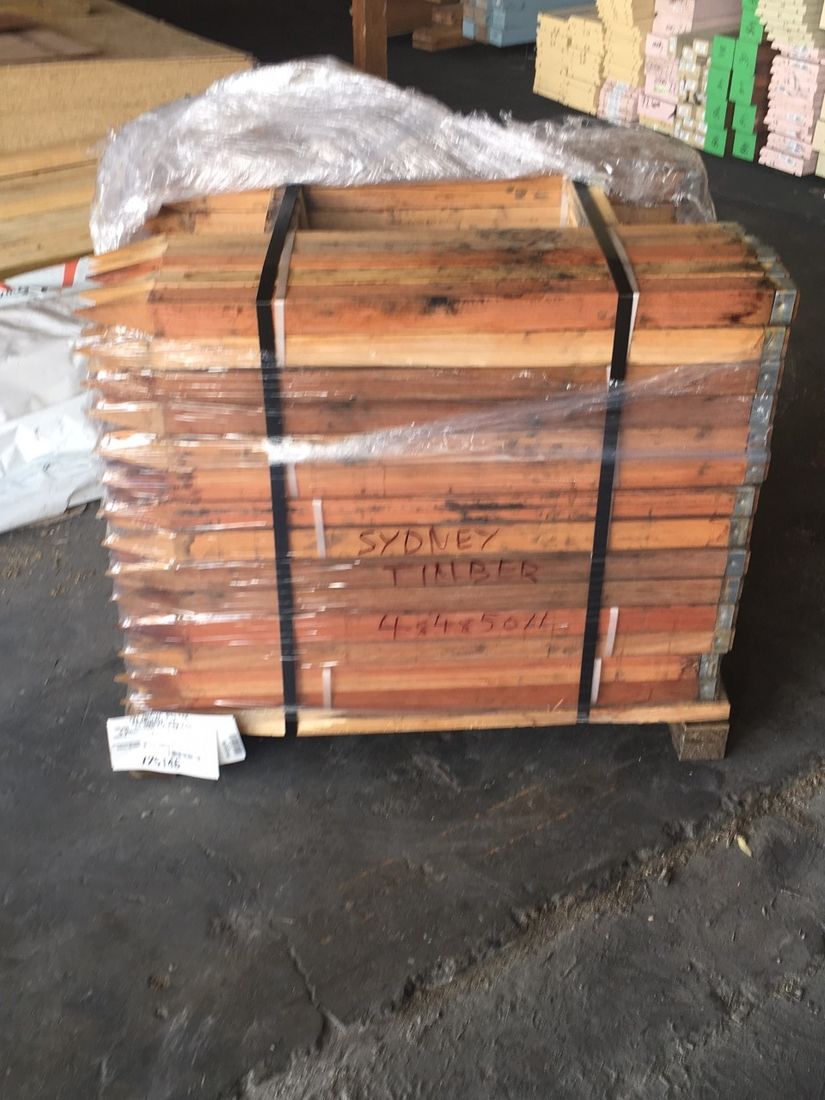

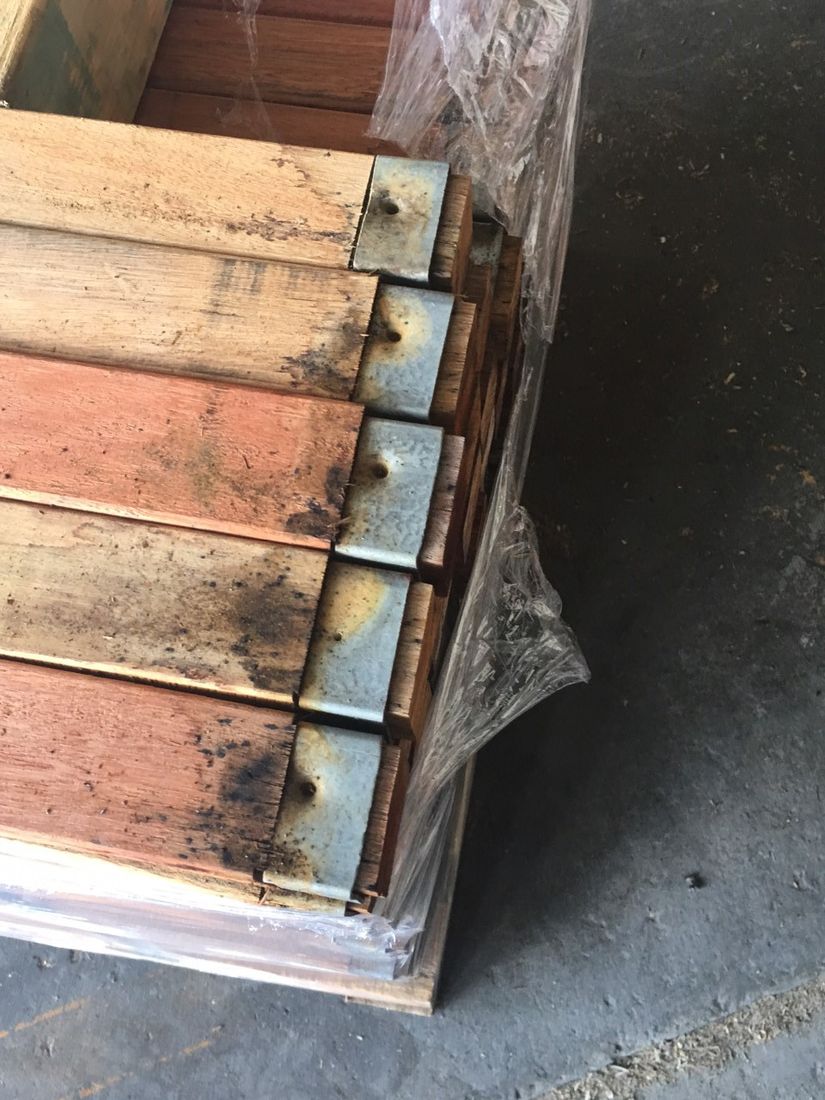

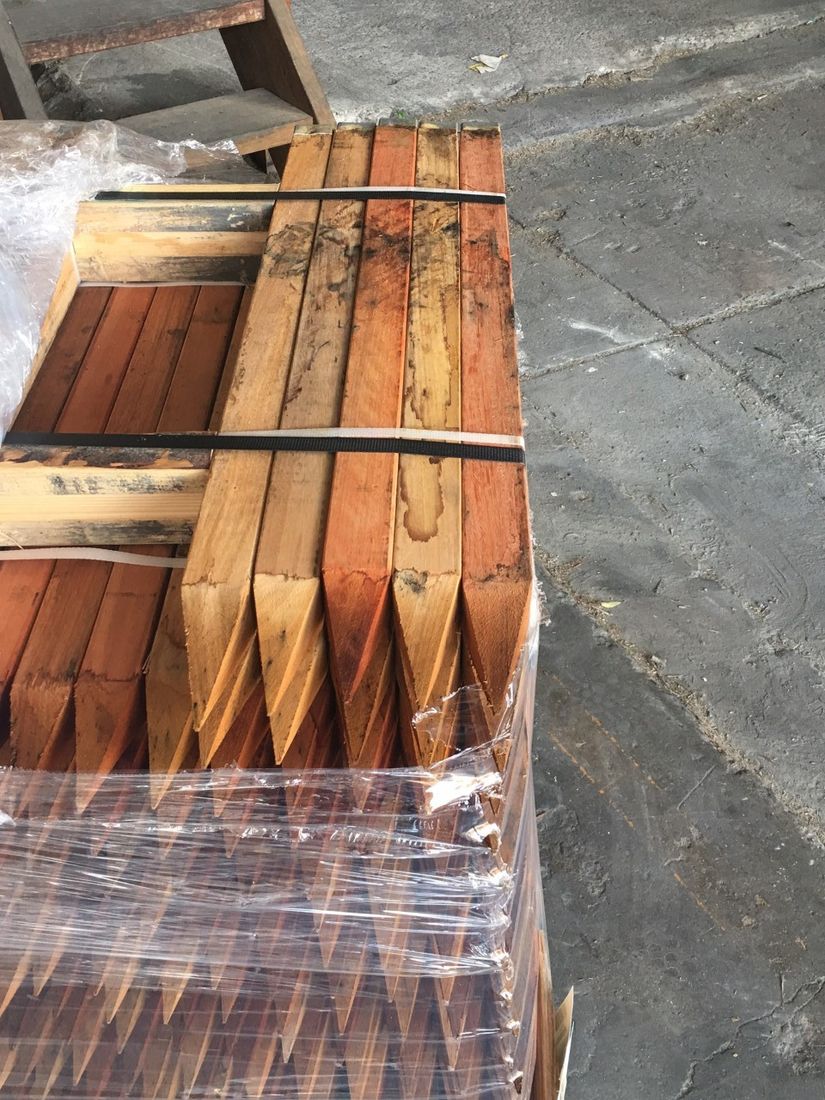

STEEL CAPPED CONCRETERS PEGS
We cut to size the following hardwood pegs:
50 x 50 450mm (400 pieces per pallet)
50 x 50 600mm (400 pieces per pallet)
50 x 50 750mm (400 pieces per pallet)
50 x 50 900mm (200 pieces per pallet)
HARDWOOD STRUCTUAL PLY BRACING
Hardwood Bracing Plywood (F22) is designed for wall and roof bracing applications, providing essential support in timber-framed buildings. Incorporating bracing into the structure allows for the inclusion of large openings and extensive areas of glass in external walls, or additional wall strength in cyclonic areas.
Although only visible during the construction phase, bracing ply plays a crucial role in protecting the building from wind damage throughout its lifespan.
Crafted from mixed species hardwood sourced from legally harvested resources and featuring an A Bond glueline compliant with AS2269, F22 Hardwood bracing plywood is available in both untreated and H2-S treated variants (treated against termites).
It is essential that all bracing ply installations adhere to the Building Code of Australia and AS 1684 – Residential Timber Framed Construction Code to ensure structural integrity and compliance.
Overview

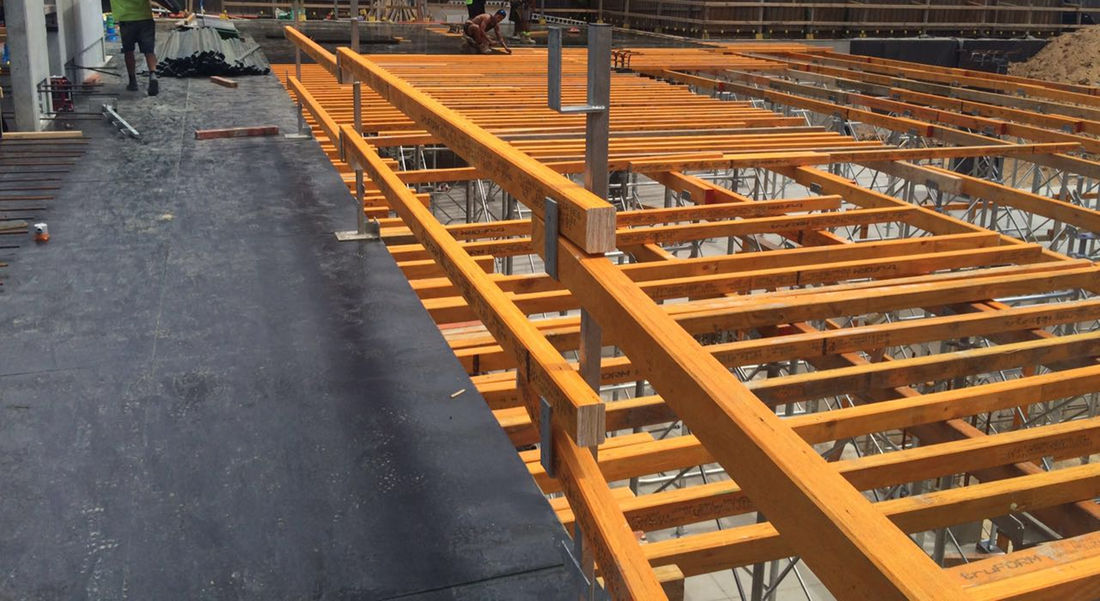

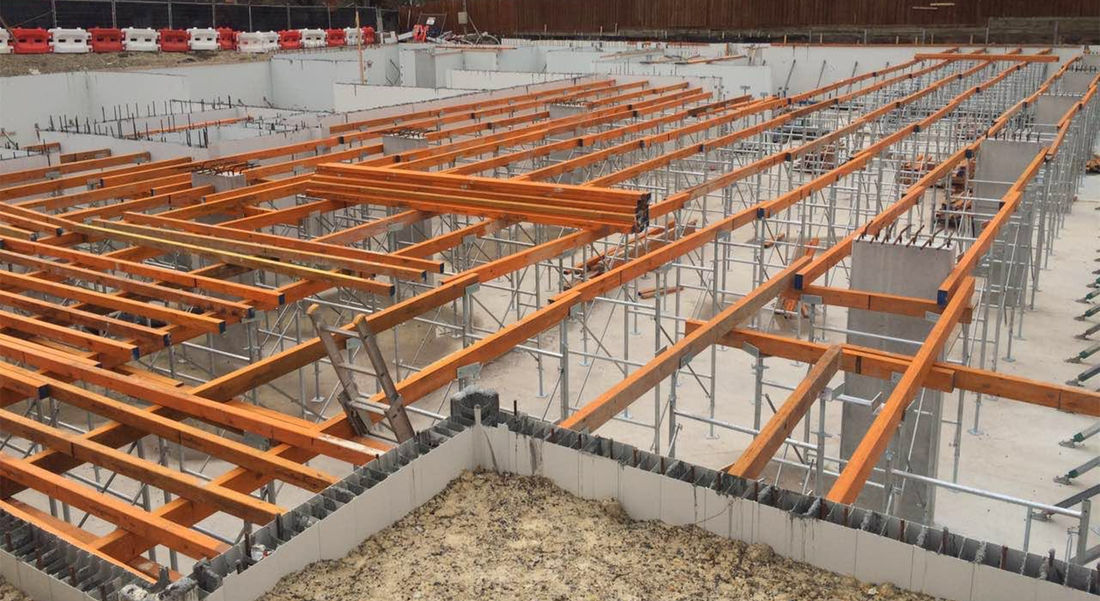

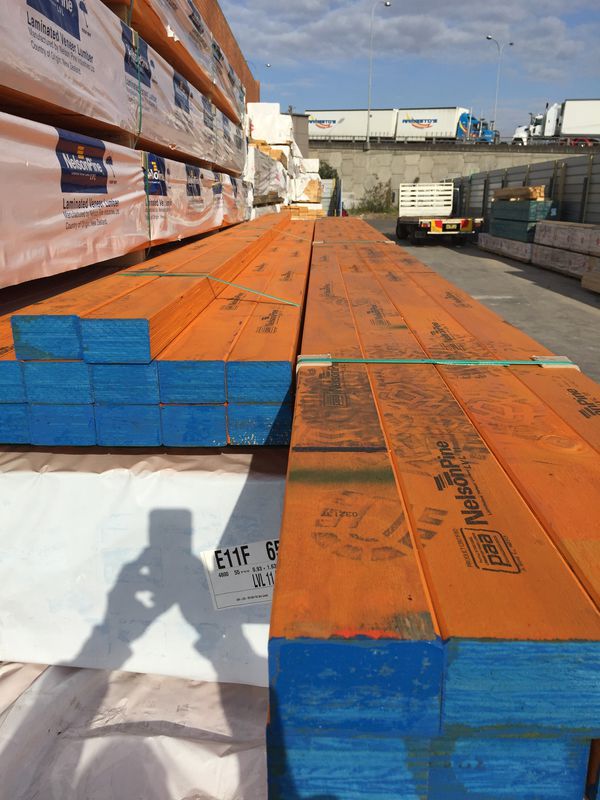

FORMWORK BEARERS AND JOISTS
We supply following sizes:
95 X 47 2.4 - 6.0 lengths (77 piece packs)
95 X 63 2.4 - 6.0 lengths (55 piece packs)
150 X 75 2.4 - 6.0 lengths (35 piece packs)
Please look at catalogue for more information on design and specifications:
